Rebar Detailing Services
At ADIPSA, we deliver high-precision Rebar Detailing for cast-in-place and precast concrete systems—producing constructible shop drawings and Bar Bending Schedules (BBS) that improve field productivity, minimize rework, and support code-compliant execution for projects in the United States and internationally.
Rebar detailing is not “just drafting.” It is a technical process that translates engineering intent into fabrication-ready documentation: bar placement, laps, hooks, development lengths, cover requirements, bending shapes, and piece tracking—aligned with project standards and coordinated across disciplines. Our deliverables enable rebar to be cut, bent, tagged, delivered, and installed with minimal tolerance issues and controlled material waste.
Rebar Detailing for Constructible Concrete Projects
Reinforced concrete performance depends on correct reinforcement execution. Even strong structural design can underperform if reinforcement is misinterpreted in the field. ADIPSA’s rebar detailing provides the technical clarity required to reduce RFIs, accelerate installation, and maintain traceability from plans to placement.
We support:
- Cast-in-place (CIP) structures and foundations
- Precast concrete systems and production workflows
- BIM-enabled coordination to detect clashes and resolve constructability constraints early
- Projects requiring international standards and consistent quality control
What Is Rebar Detailing?
Rebar detailing is the development of comprehensive fabrication and installation documentation for reinforcing steel, including:
- Bar layout and identification (marks)
- Bar diameters and spacing
- Concrete cover (clear cover) and placement constraints
- Lap splices, couplers, hooks, and anchorage requirements
- Bending shapes and geometries
- Development lengths and detailing rules per applicable codes
- Quantities, weights, and rebar tracking by element, level, or pour
The objective is straightforward: deliver documentation that the rebar fabricator and field crew can build from—accurately and efficiently.
Scope of Our Rebar Detailing Service

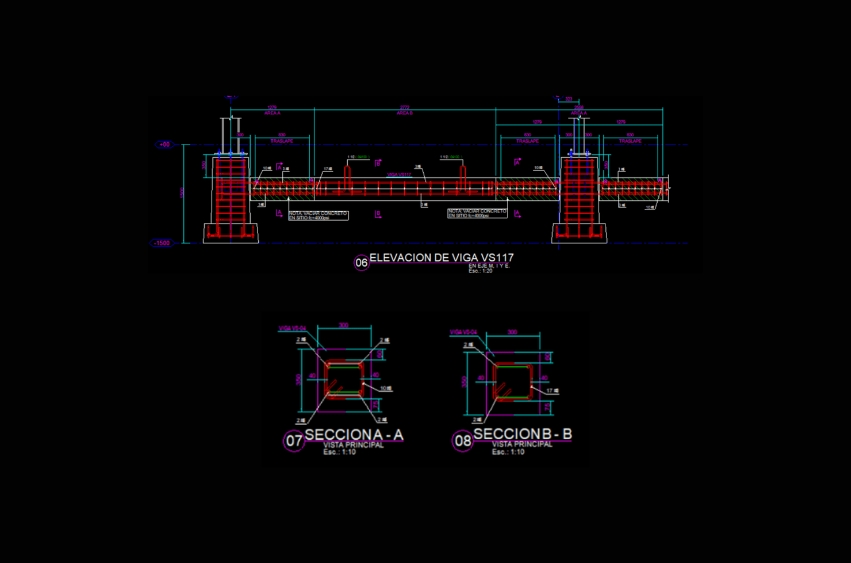

Shop Drawings (Rebar Placement Drawings)
We produce shop drawings by element and level, showing:
- Reinforcement placement, bar marks, and callouts
- Sections, details, and congested zones resolution
- Cover, clearance, and embed coordination notes
- Pour sequence considerations and practical installation logic
Bar Bending Schedule (BBS)
Our BBS includes:
- Bar mark, shape code, dimensions, and bending geometry
- Cut lengths, quantities, and weights
- Grouping by pour, element, or level (as required)
- Traceable indexing to drawing references
Splices, Anchorage, and Detailing Rules
We document:
- Lap splice locations and lengths
- Hook and anchorage details
- Coupler notes (when specified)
- Development length compliance according to project criteria
Quantification and Takeoffs
We provide:
- Rebar quantities per element, pour, level, or zone
- Weights and summaries for procurement and cost control
- Fabrication-ready outputs to reduce waste and over-ordering

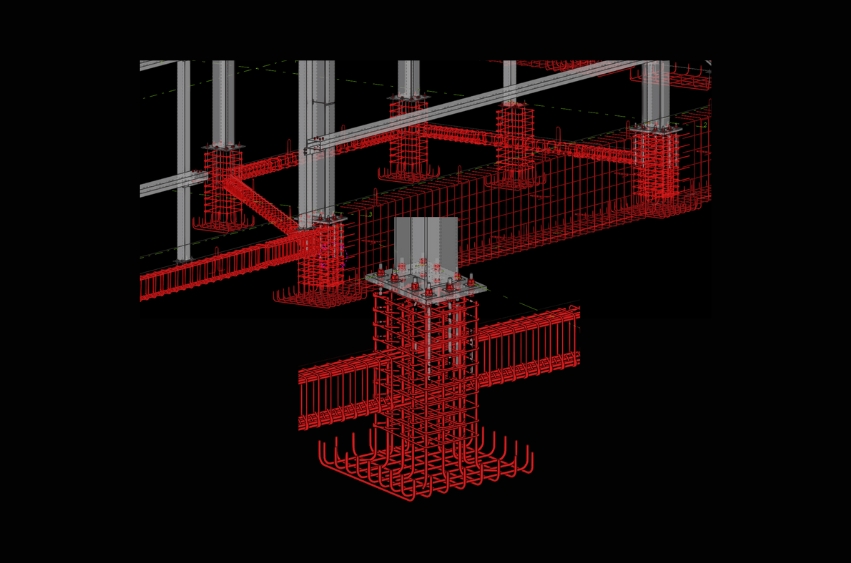

BIM Modeling and Clash Detection
When BIM is part of the workflow, we model reinforcement and coordinate to identify:
- Interferences with MEP penetrations and sleeves
- Conflicts with embeds, inserts, anchors, plates, and openings
- Congestion issues (constructability and sequence)
Precast and Cast-in-Place Expertise
Precast Concrete Detailing
We detail reinforcement for typical precast elements such as:
- Panels and architectural/structural walls
- Beams, girders, columns, stairs
- Hollow-core or specialized slab systems (as defined by the project)
- Production considerations: inserts, lifting points, and shop constraints (when provided)
We align our deliverables with precast plant requirements and help ensure reinforcement is manufacturable and traceable.
Cast-in-Place (CIP) Detailing
For CIP projects, we detail:
- Slabs (post-tensioned or conventional, as applicable)
- Beams, columns, shear walls
- Footings, pile caps, mat foundations, grade beams
- Construction joints, sequencing logic, and installation feasibility
Our Rebar Detailing Workflow
Input Review & Detailing Criteria
Review structural drawings, general notes, schedules, design criteria, and project standards.Rebar Modeling / Layout Development
Define bar arrangements, covers, splices, hooks, and detailing logic.BIM Coordination & Interference Resolution
Clash checks (when models are available) and constructability adjustments.Shop Drawings + BBS for Review / Approval
Issue packages for engineer, GC, or fabricator review (as required).Final Deliverables + Revision Control
Deliver IFC/model exports if needed, final drawings, BBS, and change log.
Deliverables You Receive
- Rebar shop drawings by element and level
- Bar Bending Schedule (BBS) with shapes, lengths, quantities, and weights
- Tables for cover, splices, and anchorage (per project criteria)
- IFC / coordination models (when required)
- Quality checklist and revision/change log for traceability
Benefits for Your Project
- Higher field productivity through clear, buildable documentation
- Reduced waste via optimized cuts and accurate quantities
- Fewer RFIs and rework with clash-aware detailing
- Better schedule control with pour-based organization and traceability
- Improved cost predictability for procurement and fabrication planning
- Professional revision management to control changes and approvals
Our Rebar Detailing services integrate seamlessly with Structural Design, BIM Coordination, and Steel Detailing, ensuring fully coordinated reinforcement documentation aligned with the overall project strategy.
Codes, Standards, and Software
We adapt to the project’s required framework, which may include ACI, project specifications, and industry standards validated with the Engineer of Record. Our team works with advanced tools including:
- Tekla Structures (rebar modeling and detailing)
- ETABS / structural platforms (as reference inputs when applicable)
- Rhino / Grasshopper (support for complex geometry workflows when required)
- IFC-based coordination for multidisciplinary interoperability
Who This Service Is For
- Structural engineering firms needing production capacity and precision
- General contractors seeking constructability-ready rebar packages
- Rebar fabricators requiring consistent BBS and installation clarity
- Precast manufacturers needing plant-aligned documentation
- Owners/developers demanding quality control, traceability, and schedule certainty
